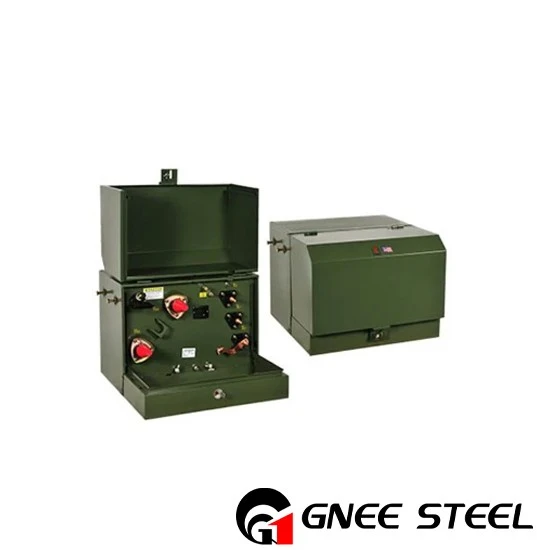

25 KVA Ib Theem Pad Mounted Transformer
Hauj lwm lawm
Kev tsis
GNEE Steel ncoo mounted faib transformers
Ib-theempad-mounted transformersyog tsim los rau cov tsev nyob hauv av thiab kev lag luam xa tawm uas muaj kev nyab xeeb, kev ntseeg siab thiab zoo nkauj tshwj xeeb yog qhov tseem ceeb. Nrog rau kev xaiv tsim nyog, lawv tuaj yeem nyob ze lossis sab hauv cov tsev kom yooj yim dua thiab txuag nyiaj.
25 kVA Transformer Specifications
| Theem | 1 faaj |
| Kev ntsuas fais fab | 25 kVA |
| Mounting | Pad Mount |
| HV Voltage | 24940 AWG / 14400 × 12470 AWG / 7200 AWG |
| LV voltage | 240/120 |
| HV BIL | 125 × 95 kV |
| LV IB | 3 5kv |
| Polarity | Ntxiv |
| Txoj kev txias | ONAN |
| Cov khoom siv winding | Aluminium |
| Kev ua tau zoo | 98.63% |
| Std. | CSA C227.3 |
| Kua dej | Mineral Roj |
| Ntau zaus | 60 Hz |
| Coj mus rhaub changer | 5- txoj haujlwm |
| Kua muaj peev xwm | 295 L |
| Tag nrho qhov hnyav | 600 KG |
| HV Bshg | bushing zoo |
| LV Bshg | 7 qhov |
| Impedance | 1.50% |
| Xim Xim | Munsell ntsuab |
| Fuses | Bayonet & ELSP fuse |
pad mounted faib transformers
Pad Mounted Transformers Feature
1. Qhov no ib-theem pad-mountedfaib transformeryog ib qho khoom lag luam American box-type, thiab nws cheeb tsam tsuas yog li ntawm 1/3 ntawm lub txee-hom substation (European-style txee transformer).
2. Cov khoom siv tau txais kev sib khi tag nrho thiab insulated thav duab, uas muaj kev nyab xeeb thiab txhim khu kev qha, ua tau raws li qhov yuav tsum tau ua, muaj cov qauv compact thiab zoo nkauj tsos. Tsis tas yuav muaj chav faib hluav taws xob thiab nws tuaj yeem ntsia tau ncaj qha rau hauv tsev lossis sab nraum zoov, xws li ntawm txoj kev lossis hauv cov hlua ntsuab. Qhov no tsis yog tsuas yog cov khoom siv hluav taws xob xwb, tab sis kuj yog ib qho chaw kho kom zoo nkauj ib puag ncig
3. Pad-mounted faib transformers tuaj yeem muab hluav taws xob ncaj qha rau cov khoom siv hluav taws xob. Nws kuj tseem siv tau los ua ib feem ntawm lub nplhaib network fais fab mov system. Kev ua haujlwm yooj yim hloov ua kom ntseeg tau thiab hloov tau lub zog.
ib theem pad mounted faib transformers
FAQ
1. Koj puas txais kev pabcuam customized?
Peb muab kev pabcuam OEM / ODM, tuaj yeem luam koj lub logo ntawm cov khoom. peb cov kws tshaj lij thiab cov kws tshaj lij pab pawg tuaj yeem muab qhov kev txaus siab txaus siab raws li koj qhov kev kos duab thiab cov kev txwv.
2. Koj tus MOQ yog dab tsi?
Peb MOQ yog 1 daim.
3. Koj lub sijhawm khoom xa tuaj ntev npaum li cas?
Nws nyob ntawm koj cov khoom yuav tsum tau thiab kom muaj nuj nqis. Feem ntau, 5 ~ 10 hnub ua haujlwm yog avaliable.
4. Koj yuav daws cov teeb meem zoo li cas?
Thov muab cov duab ntxaws ntxaws ntawm cov teeb meem zoo. peb lub tuam tsev technical thiab zoo kuaj yuav analyse.we yuav ua ib tug txaus siab soluton nyob rau hauv 2 hnub.
5. Koj cov nqe lus them nqi yog dab tsi?
30% T / T ua ntej, 70% ua ntej xa zaub mov. West union, L / C kuj tau txais.
Cim npe nrov: 25 kva ib theem ncoo mounted transformer, Tuam Tshoj 25 kva ib theem ncoo mounted transformer manufacturers, lwm tus neeg, Hoobkas
Xa kev nug
