Lub ntsiab Cheebtsam thiab cov ncauj lus kom ntxaws Specification ntawm Roj Immersed Transformers

GNEE Steel Txias Rolled Silicon Steel Transformer

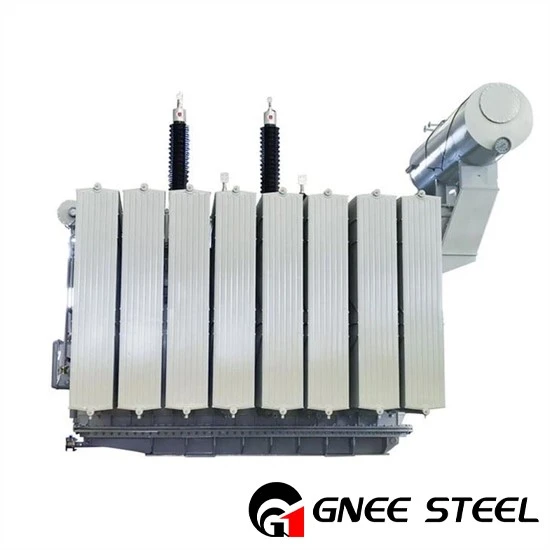

Covfaib transformeryog ib qho ntawm cov khoom siv tseem ceeb hauv cov khoom siv hluav taws xob rau cov tsev lag luam thiab pej xeem, uas nqis los ntawm 10 (6) kV lossis 35kV network voltage mus rau 230/400V tsheb npav voltage siv los ntawm cov neeg siv. Kev faib tawm transformer yog ib qho tseem ceeb ntawm lub substation, thiab cov roj-immersed transformer feem ntau ntsia rau hauv ib chav sib cais transformer. Dab tsi yog cov khoom tseem ceeb ntawm cov roj-immersed transformer? Dab tsi yog cov qauv thiab cov ncauj lus kom ntxaws ntawm cov roj-immersed transformer?

I. Dab tsi yog qhov tseem ceeb ntawm covroj-immersed transformer?

1. Cov tub ntxhais hlau: Cov hlau tseem ceeb ntawm cov roj-immersed transformer feem ntau yog siv cov khoom zoo, siab sib nqus conductivity txias-dov oriented silicon steel los xij nrog cov pob qij txha tag nrho, kev sib koom ua ke peb theem, tsis muaj qhov khi, thiab ib qho phaj-clamping qauv.

2. Coil: Cov khoom siv coil siv cov hlau tiaj tiaj ua los ntawm cov khoom siv hlau tsis muaj pa oxygen zoo. Cov hluav taws xob qis qis siv cov qauv txuas ntxiv lossis muab kauv; lub high-voltage coil siv ib tug nruam los yog twisted nruam qauv, nrog reinforced rwb thaiv tsev thaum pib thiab xaus. Lub kauj tsis yog dipped nyob rau hauv cov xim, tab sis yog qhuav los ua ib qho organic tag nrho.

3. Lub cev rwb thaiv tsev: Ib qho 30mm integral laminated ntoo nias lub nplhaib thiab 30mm phua siab phaj ntxiv rau sab sauv kawg ntawm lub kauj hauv lub qhov rais hlau core. Ib qho 70mm ib leeg laminated ntoo txhawb nqa phaj yog ntxiv rau hauv qis kawg, uas tsis tsuas yog ntxiv dag zog rau lub ntsiab rwb thaiv tsev lub zog tab sis kuj txhim kho axial stability ntawm lub kauj.

4. Lead: Rau high-voltage leads, high-quality on-load kais changer yog siv rau on-load voltage tswj, thiab ib tug tsis-excitation kais changer yog siv rau me me tam sim no tsis muaj excitation voltage regulator. Peb ib-theem tsis-excitation kais hloov pauv yog siv rau tam sim no loj.

5. Roj tank: Roj-immersed transformers nrog lub peev xwm tsawg dua los yog sib npaug ntawm 6300KVA siv lub tank hom roj tank thiab tsau phaj-hom radiators, thaum roj-immersed transformers nrog lub peev xwm ntau dua lossis sib npaug ntawm 8000KVA siv tswb- hom roj tank thiab tshem tau phaj-hom radiators.

Txias Rolled Oriented Silicon Steel Transformer

Cold Rolled Non Oriented Silicon Steel Transformer

Cold Rolled Hluav Taws Xob Hlau rau Transformer

II. Dab tsi yog cov qauv thiab cov ncauj lus kom ntxaws ntawm cov roj-immersed transformer?

1. Tsis yog-sealed roj-immersed transformer: Cov khoom series tseem ceeb muaj xws li S8, S9, S10, thiab lwm yam, uas yog dav siv nyob rau hauv industrial, ua liaj ua teb, thiab pej xeem vaj tse.

2. Sealed oil-immersed transformer: Cov khoom lag luam tseem ceeb suav nrog S9, S9-M, S10-M, thiab lwm yam, uas feem ntau yog siv rau hauv qhov chaw muaj roj thiab tshuaj lom neeg ntau hauv cov roj av. thiab chemical industries.

3. Sealed oil-immersed transformer: Cov khoom lag luam tseem ceeb suav nrog BS9, S9-, S10-, S11-MR, SH, SH12-M, thiab lwm yam, uas tuaj yeem siv rau kev faib hluav taws xob hauv ntau qhov chaw xws li kev lag luam, kev ua liaj ua teb, thiab pej xeem vaj tse.

Tsis tas li ntawd, muaj ntau yam tshwj xeeb transformers, xws li high-voltage transformers rau kev ntsuam xyuas, transformers rau hluav taws xob furnaces, transformers rau vuam, thiab transformers rau siv nyob rau hauv thyristor circuits, raws li zoo raws li voltage thiab tam sim no transformers rau ntsuas ntsuas.
