CRGO Silicon Hluav Taws Xob Hlau Chev 0.35mm Thickness Rau Transformer

NtawmGNEE, peb nkag siab tias lub hauv paus ntawm koj lub transformer txiav txim siab nws txoj kev ntseeg siab, kev ua tau zoo, thiab kev ua neej nyob. Raws li ib tug ua lag luam ntawm grain- taw qhia hluav taws xob steels, peb muab thoob ntiaj teb transformer manufacturers nrog hwm0.35mm CRGO Silicon Hluav Taws Xob Hlau Chevuas minimizes core poob thiab maximizes magnetic flux ceev. Txawm hais tias koj tab tom tsim cov transformers, fais fab transformers, los yog reactor cores, peb0.35mm thickness CRGO steelmuab qhov zoo tshaj plaws sib npaug ntawm stackability thiab eddy tam sim no txo.

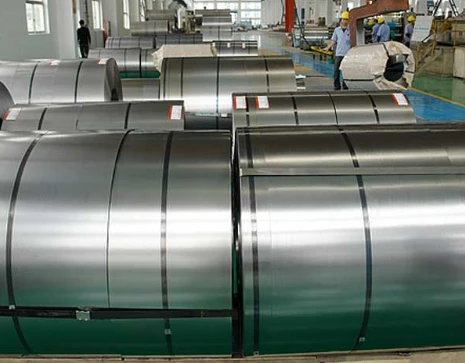

0.35mm CRGO silicon steel kauj





Cov ntsiab lus ntawm silicon siab yog qhov zais cia rau qis hysteresis poob. Peb0.35mm CRGO Silicon Hluav Taws Xob Hlau Chevtswj nruj chemistry tswj:

Element	Cov ntsiab lus (%)	Lub luag haujlwm hauv Kev Ua Haujlwm
Silicon (Si)	2.9% – 3.3%	Nce hluav taws xob resistivity; txo cov eddy tam sim no.
Cov pa roj carbon (C)	Tsawg dua lossis sib npaug li 0.003%	Tiv thaiv kev laus hlau nplaum.
Manganese (Mn)	0.03 – 0.10%	Ua ke nrog sulfur los tiv thaiv kub brittleness.
Sulfur (S)	Tsawg dua lossis sib npaug li 0.001%	Minimized kom tsis txhob grain ciam teb tsis muaj zog.
Aluminium (Al)	0.005 – 0.015%	Ua raws li deoxidizer thiab nitride qub.





Txhawm rau kom cov punching du thiab stacking, peb0.35mm CRGO Silicon Hluav Taws Xob Hlau Chevtswj cov cuab yeej cuab tam no:

Khoom	Tus nqi	Qhov tseem ceeb
Tensile zog	340-360 MPa	Tiv thaiv kev tawg thaum lub sij hawm siab - stamping ceev.
Yield zog	305-325 MPa	Xyuas kom cov laminations tiaj tus tom qab txiav.
Elongation	8 – 12%	Tso cai rau me ntsis khoov thaum lub sij hawm sib dhos ua ke.
Hardness (HV)	180 – 210	Tiv thaiv burr tsim ntawm xuas nrig ntaus tuag.
Lamination Factor	Ntau dua lossis sib npaug li 97%	Maximizes core ceev thiab txo excitation tam sim no.





Tus nqi -Kev Ua Haujlwm Zoo Tshaj

• Tus nqi qis dua:Thinner coils (0.23mm) xav tau ntau dua dov hla, nce nqi. Peb 0.35mm CRGO muaj 90% ntawm cov hlau nplaum ua haujlwm ntawm 70% ntawm tus nqi.
• Txo Punching Burr:Qhov zoo tshaj plaws hardness ntawm 0.35mm steel ncua kev tuag ntawm 40% piv rau ultra- qib nyias.



Ntiaj teb no ua raws cai thiab lub zog Efficiency

Siv peb lub cuab tam0.35mm CRGO Silicon Hluav Taws Xob Hlau Chevpab koj transformers ntsib:

• MEPS (Cov Qauv Ntsuas Hluav Taws Xob Tsawg)rau qib 1 thiab theem 2 efficiency.
• IEEE C57.12.00 Nwsrau tsis muaj -load poob txwv.
• IEC 60076: Uayuav tsum tau txo suab nrov (Grain orientation txo magnetostriction).



Txhim khu kev rwb thaiv tsev txheej

Txhua kauj nta aTensile Insulating Txheej(T2, T3, lossis T4 qib):

• Surface Resistivity:> 300 Ω·cm² / cm² (ib sab).
• Withstands 800Vrwb thaiv tsev kuaj.

Cov txheej yog kub resistant mus txog 820℃rau kev ntxhov siab nyem annealing.





Lub versatility ntawm0.35mm CRGO Silicon Hluav Taws Xob Hlau Coil thicknessua rau nws lub caj qaum ntawm cov kab hluav taws xob niaj hnub. Cov ntawv thov ib txwm muaj xws li:

• Roj-immersed Distribution Transformers (10kV - 35kV):Qhov twg tsis muaj -load poob yog qhov tseem ceeb.
• Qhuav- hom Transformers:Qhov twg 0.35mm thickness txo cov suab nrov.
• Reactor Cores:Rau harmonic filtering nyob rau hauv VFDs thiab HVDC systems.
• Tam sim no Transformers (CT) thiab Potential Transformers (PT):High permeability kom meej metering.
• Vuam Tshuab & UPS Systems:Rau txhim khu kev qha zog cia thiab hloov dua siab tshiab.
• Case hauv point:Lub tuam txhab German transformer hloov lawv lub zos 0.30mm mov nrog peb0.35mm CRGO Silicon Hluav Taws Xob Hlau Chevthiab ua tiav qhov kev ntsuam xyuas tib yam thaum txo cov nqi khoom siv los ntawm 12%.





Peb muab tag nrho traceability rau txhua tus0.35mm CRGO Silicon Hluav Taws Xob Hlau Chev.



Mill Test Certificate (MTC)

Txhua qhov khoom xa tuaj suav nrog MTC ntawv pov thawj qhia:

• Thaum tshav kub kub thiab tshuaj ntsuam xyuas (Si%, C%, S%).
• Sib nqus poob ntawm 1.5T & 1.7T.
• Stacking factor test results.
• Txheej adhesion ntsuam xyuas (Class C lossis zoo dua).





Thib peb-Tsev Neeg Soj Ntsuam Zoo Siab Txais Tos

Peb pab SGS, BV, lossis TÜV tshuaj xyuas ntawm peb lub tsev khaws khoom ua ntej xa khoom. Peb kuj muabkev pabcuam slittingtxiav cov0.35mm CRGO Silicon Hluav Taws Xob Hlau Chevrau hauv kev cai dav (los ntawm 20mm mus rau 1250mm) kom haum koj cov punch xovxwm kab.





Tsis txhob cia cov ntaub ntawv tseem ceeb uas tsis muaj peev xwm tuav rov qab koj qhov kev ua haujlwm transformer. Cov0.35mm CRGO Silicon Hluav Taws Xob Hlau Coil thicknesssawv cev rau tus qauv kub rau kev sib npaug sib nqus efficiency thiab kev lag luam ntau lawm. Txawm hais tias koj xav tau cov ntsiab lus tshwj xeeb silicon (2.9%-3.3%) lossis cov neeg kho tshuab ua tau zoo, GNEE muaj cov Tshuag thiab cov kws tshaj lij los txhawb koj lub Hoobkas.



Npaj txhij los kuaj peb cov khoom?
👉 Nyem qhov "Xa Nug" khawm tam sim nothov kom tau tus qauv dawb, tau txais daim ntawv teev nqi tshiab rau0.35mm CRGO Silicon Hluav Taws Xob Hlau Chev, lossis teem sijhawm hu rau video los tshuaj xyuas peb lub tsev khaws khoom. Cia GNEE ua koj tus khub ntsiag to hauv kev tsim kom muaj suab nrov, txias dua, thiab muaj txiaj ntsig ntau dua.

Tsis txhob tos – optimize koj qhov tseem ceeb poob hnub no.

Thov Ib Daim Quote



Vim li cas CrGO steel siv hauv transformers?

CRGO muaj qis dua hysteresis thiab eddy tam sim no poob vim nws cov qauv nplej, ua rau muaj kev ua tau zoo dua.. Qhov no ua rau CRGO mus- mus rau cov khoom siv rau lub zog-txoj kev hloov pauv tau zoo thiab lub zog faib hluav taws xob.



Vim li cas silicon steel siv hauv transformers?

Silicon hlau yog siv vimNws muaj qhov sib nqus permeability siab thiab tsis tshua muaj hysteresis poob, uas txo lub zog siv hluav taws xob thaum lub voj voog magnetization. Qhov sib ntxiv ntawm silicon (feem ntau yog 3-4%) ua rau kom muaj kev tiv thaiv, txo qis eddy tam sim no poob thiab txhim kho efficiency.



Lub thickness ntawm CRGO M4 yog dab tsi?

CRGO CUT LAMINATION CORE (Qib - M4(0.27mm ib))



Dab tsi yog cov qib sib txawv ntawm CrGO steel?

CRGO (Cold Rolled Grain Oriented) steel yog siv nyob rau hauv transformer cores, thiab nws tuaj nyob rau hauv qib zoo liM2, M3, M4, M5, thiab M6. Cov qib no hais txog qhov tuab thiab cov khoom siv sib nqus ua haujlwm.



CRGO steel puas tuaj yeem siv rau hauv cov tshuab hluav taws xob?

Hluav taws xob cov Motors:CRGO steel kuj tseem siv rau hauv kev tsim hluav taws xob motors. Cov khoom siv hlau nplaum ua lub luag haujlwm tseem ceeb hauv kev txhim kho lub cev muaj zog thiab kev ua haujlwm zoo.



QIB	Thickness (hli)	Hlau poob (W / kg)
23Q110	0.23	1.1
27Q120	0.27	1.2
27Q130	0.27	1.3
30Q120	0.3	1.2
30Q130	0.3	1.3
35Q135	0.35	1.35
35Q145	0.35	1.45
35Q155	0.35	1.55
23 tx090	0.23	0.9
23 tx095	0.23	0.95
23 QG100	0.23	1
27 tx095	0.27	0.95
27 QH100	0.27	1
27 QH120	0.27	1.2
30 QH105	0.3	1.05
30 QG120	0.3	1.2
23 tx080	0.23	0.8
23 tx085	0.23	0.85
23 tx090	0.23	0.9
23 tx095	0.23	0.95
27 tx085	0.27	0.85
27 tx090	0.27	0.9
27 tx095	0.27	0.95
27 TSI 100	0.27	1
27 TSI 120	0.27	1.2
30 RK100	0.3	1
30 TSI 105	0.3	1.05
30 TSI 120	0.3	1.2

35 AWV 230	0.35	2.1
35 AWV 250	0.35	2.3
35 AWV 270	0.35	2.5
35 AWV 300	0.35	2.7
35 AWV 360	0.35	3.3
35 AWV 400	0.35	3.6
35 AWV440	0.35	4
50 AWV 270	0.5	2.5
50 AWV 290	0.5	2.7
50 AWV 310	0.5	2.9
50 AWV 350	0.5	3.1
50 AWV 400	0.5	3.5
50 tx470	0.5	4
50 AWV 700	0.5	4.3
50 AWV 800	0.5	5
50 AWV 1000	0.5	6
50 AWV 1300	0.5	7
50 TSI 350	0.5	6
50 AWV400	0.5	3.5
50 AWV430	0.5	4
50 AWV 500	0.5	4.3
65W530	0.65	5
65W800	0.65	6.5
70 tx340	0.7	3.4
70 tx380	0.7	3.8
75 KWG 400	0.75	4
80 tx420	0.8	4.2
85 tx450	0.85	4.5
