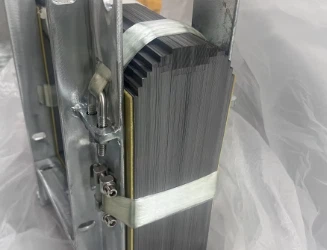

B20R070 Power Transformer Chev Tib Theem Transformer Laminated Tub Ntxhais
Oct 22, 2025
Tso lus
Lub theem hloov pauv Laminated Core yog cov tseem ceeb sib xeem sib yuav ntawm ib qho {}} theem hloov pauv. Nws txo qis rau Eddy tam sim no poob los ntawm "tus qauv Laminated" kom ua tiav Magnitoelectric hloov nyiaj los ntawm kev hloov hluav taws xob (xws li cov neeg rau tsev neeg thiab kev lag luam me me).
Transformer laminated tub ntxhaisYam zoo
Tsawg eddy tam sim no poob: Ua los ntawm Silicon cov ntawv txheeb los ntawm fawm kib. Lub rwb thaiv tsev ntawm cov ntawv thaiv Eddy cov dej khov kho hauv lub zog hluav taws xob hauv kev sib nqus Circuit Court thiab txhim kho Transformer efficiency.
Haum rau ib qho -} epase science: Nws cov qauv sib nqus Circuit Court Nws muaj tus qauv yooj yim thiab cov ntim me dua li peb -} theem hloov pauv ntawm tib lub zog.
Siab sib nqus permeability: Cov ntaub ntawv silicon steel ntawv muaj kev sib nqus zoo heev, uas tuaj yeem txhim kho sib nqus flux, thiab xyuas kom ruaj khov voltage tso tawm ntawm lub transformer.
Transformer laminated tub ntxhaisDaim ntawv thov
- Pej xeem teb: Ib Leeg -} pegase faib cov hloov pauv hauv cov khoom siv hauv tsev xws li cua txias thiab tub yees.
- Muaj Daim Teb: Tswj hloov pauv kev txhawb nqa cov cuab yeej siv tshuab me me thiab tib - page motors, nrog rau cov hloov hluav taws xob thiab cov khoom siv hluav taws xob me me.
Khoom Qhia
Peb muab cov qhab nia dav dav rau koj txhua qhov kev xav tau: B30p120, 23QG190, 23QG09, 23MG085, 23QG085, 23rk080, 23rk075, B23R070, 20qg085, 20rk080, 20rk075, B20R070, B20R070, M1H, M1H, M1, M4, MF. Txhua qib kawm yog engineered los muab kev ua tau zoo thiab kev ntseeg tau.
| Ntaus | Teem nqi | Qhov dav | Core max Loss@P1.7T}} / 50Hz | Lamination Factor (%) | Min induction @ b800 |
| Hom Hom | 23Q110 | 35-1200mm | 1.10w / kg | 97.2 | 1.82T |
| 23Q120 | 1.20W / kg | 97.2 | 1.82T | ||
| 27Q120 | 1.20W / kg | 97.5 | 1.82T | ||
| 30G120 | 1.20W / kg | 98 | 1.82T | ||
| Tshaj Induction Ntaus |
B20P085 | 35-1200mm | 0.85w / kg | 97 | 1.86T |
| B23P085 | 0.85w / kg | 97.2 | 1.88T | ||
| B23P090 | 0.90W / kg | 97.2 | 1.88T | ||
| B23P095 | 0.95w / kg | 97.2 | 1.88T | ||
| B23P100 | 1.00W / KG | 97.2 | 1.88T | ||
| B27P095 | 0.95w / kg | 97.5 | 1.89T | ||
| B27P100 | 1.00W / KG | 97.5 | 1.89T | ||
| B30P120 | 1.20W / kg | 98 | 1.89T | ||
| Sau ua kom ua kom zoo siab induction Hom (laser) |
B20R070 | 35-1200mm | 0.70W / KG | 97 | 1.86T |
| B23R085 | 0.85w / kg | 97.2 | 1.88T | ||
| B27rk085 | 0.85w / kg | 97.5 | 1.89T |
Gnee Featured khoom
GNEE pab them tus nqi hlau rau lub ntiaj teb. Peb cov CORES tuaj yeem xaiv tau ntau cov ntaub ntawv, cov ntawv, kev siv, tsim khoom siv, kom tau raws li cov neeg siv khoom sib txawv. Tshawb peb cov khoom dav dav tam sim no ~
Cov txheej txheem tsim khoom
1. Raw Khoom Siv Sourcing
2. Slitting
3. Ntaus
4. Laminating
5. Tub ntxhais ua
6. Kuaj
