Hom Kev Siv Cov Ntaub Ntawv ntawm 1500kVA Roj Filled Distribution Transformers hauv Fais Grids

Cov1500kVA roj puv tis transformeryog ib qho ntawm cov cuab yeej muaj txiaj ntsig tshaj plaws hauv cov phiaj xwm hluav taws xob niaj hnub no. Rated ntawm 1.5 MVA, nws nyob qhov zoo tagnrho "qhov chaw qab zib" ntawm cov ncej me me -mounted units (txog 500 kVA) thiab loj substation transformers (5 MVA +). To taub covKev siv cov xwm txheej ntawm 1500kVA roj ntim cov khoom xa tawm hauv cov phiaj xwm hluav taws xobpab cov phiaj xwm phiaj xwm phiaj xwm thiab cov kws ua haujlwm ua haujlwm xaiv txoj kev daws teeb meem.



Hauv phau ntawv qhia no, peb yuav tshuaj xyuas cov xwm txheej feem ntau xa mus - los ntawm cov chaw siv hluav taws xob faib hluav taws xob thiab cov khoom siv hluav taws xob rau kev siv hluav taws xob txuas ntxiv, cov chaw lag luam, cov chaw khaws ntaub ntawv, thiab kev ua haujlwm tsuas.





Feem ntauCov ntaub ntawv siv feem ntau ntawm 1500kVA roj ntim cov khoom xa tawm hauv cov phiaj xwm hluav taws xobyog nyob rau hauv kev faib hluav taws xob substations. Cov transformers no nqis qis nruab nrab voltage (piv txwv li, 11 kV, 13.8 kV, lossis 24.9 kV) mus rau qhov tsis tshua muaj hluav taws xob (400V lossis 480V) rau cov neeg nyob ib puag ncig, cov cheeb tsam lag luam, lossis cov cheeb tsam me me. Ib chav tsev feem ntau ua haujlwm rau 300-500 cov neeg siv khoom nyob.



Cov kws tsim hluav taws xob siv hluav taws xob nyiam qhov ntsuas 1500 kVA vim nws ua raws li tus qauv pub muaj peev xwm, sib npaug tus nqi thiab muaj peev xwm, thiab txhawb nqa N-1 redundancy. Cov yam ntxwv tseem ceeb rau daim ntawv thov no muaj xws li off-circuit tap changer (± 5%), conservator tank nrog silica gel breather, roj qib ntsuas, thiab cov ntsuas kub saum toj kawg nkaus.

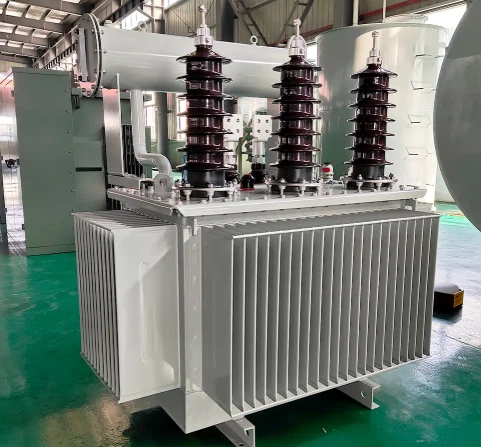

1500kVA transformer nyob rau hauv ib qho hluav taws xob substation





Lwm qhov tseem ceebCov ntaub ntawv siv feem ntau ntawm 1500kVA roj ntim cov khoom xa tawm hauv cov phiaj xwm hluav taws xobyog industrial fais fab mov. Factories, cov chaw ua haujlwm, thiab cov chaw tsim khoom hnyav siv a1500kVA peb theem roj immersed transformertxhawm rau nqis peev hluav taws xob mus rau 480V lossis 600V rau cov motors, conveyors, furnaces, thiab compressors.



Cov ntawv thov kev lag luam yuav tsum muaj kev kub siab tam sim no tiv taus (lub cev muaj zog pib), muaj peev xwm dhau, kev sib haum xeeb, thiab plua plav / dej tsis kam. Rau cov neeg siv khoom no, GNEE muab tooj liab windings (qis poob, luv dua -circuit withstand), nce core cross-section, thiab hnyav- lub tank tsim nrog kev xaiv yuam kom txias (ONAF).

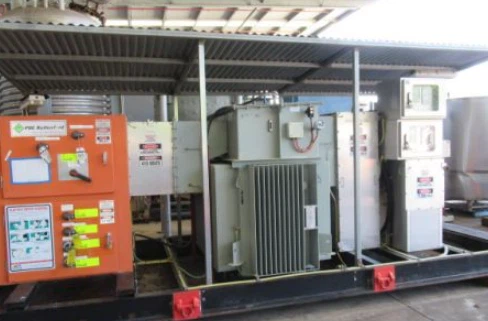

1500kVA transformer muaj





Kev loj hlob saiCov ntaub ntawv siv feem ntau ntawm 1500kVA roj ntim cov khoom xa tawm hauv cov phiaj xwm hluav taws xobyog renewable zog integration. Nyob rau hauv lub hnub ci ua liaj ua teb, txhua 1.5 MW central inverter yuav tsum tau a1500kVA roj puv tis transformermus nce los ntawm 690V mus rau nruab nrab voltage (11 kV txog 34.5 kV) rau kab sib txuas.



Nyob rau hauv cov cua ua liaj ua teb, cov transformers no tau mounted hauv turbine towers los yog nyob rau sab nraud pads, nce los ntawm 690V mus rau sau daim phiaj voltage. Cov kev cai tseem ceeb suav nrog tsis muaj- qhov poob qis (kom ua kom lub zog sau ntau tshaj), kev sib haum xeeb, kev sib tw tooj liab, thiab cov hneev taw me me. Qhov ntsuas 1500 kVA ua haujlwm zoo kawg nkaus nrog cov qauv inverter thiab turbine ntau thiab tsawg.

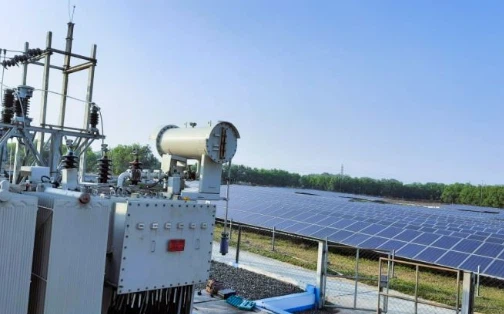

1500kVA roj puv transformer ntawm lub hnub ci ua liaj ua teb





Lwm qhov tseem ceebCov ntaub ntawv siv feem ntau ntawm 1500kVA roj ntim cov khoom xa tawm hauv cov phiaj xwm hluav taws xobyog kev lag luam complexes - khw malls, tsev kho mob, chaw ua hauj lwm yees, thiab tsev so. Ib tug raug 200,000–300,000 sq ft lub tsev lag luam muaj ntau qhov sib txawv ntawm 1,200–1,800 kVA, ua rau 1500 kVA qhov zoo tagnrho.



Rau cov chaw zov me nyuam, cov tshuab hloov pauv no pub UPS cov tshuab thiab lub zog faib hluav taws xob (PDUs) nrog 2N redundancy. Cov kev xav tau tseem ceeb suav nrog cov suab nrov tsawg (tsawg dua lossis sib npaug li 55 dB rau thaj chaw lag luam), qis qis qis, ultra- poob qis (cov ntaub ntawv chaw ua haujlwm 24/7), thiab xaiv FR3 natural ester kua rau kev nyab xeeb hluav taws hauv vault installation.



Siv Case Summary Table

Siv Case	Thawj Voltage	Cov Lus Qhia Tseem Ceeb
Utility Substation	11 kV, 13.8 kV, 24.9 kV	Coj mus rhaub changer, conservator, tsawg poob
Kev lag luam khoom siv	13.8 kV, 34.5 kV	High inrush, tooj liab windings, ONAF
Solar Farm	690V rau 34.5kV	Tsawg tsis muaj -load poob, harmonic kam rau ua
Cua Farm	690V rau 34.5kV	Compact, siab luv - Circuit Court withstand
Commercial Complex	11 kV, 24.9 kV	Tsawg suab nrov, FR3 kua dej xaiv
Data Center	13.8 kV, 34.5 kV	Tsawg PD, ultra- poob qis, 2N





Kev ua haujlwm mining nthuav qhia qhov xav tauCov ntaub ntawv siv feem ntau ntawm 1500kVA roj ntim cov khoom xa tawm hauv cov phiaj xwm hluav taws xob. Cov khoom siv mining (shovels, xyaum, conveyors) yuav tsum tau rugged transformers uas tiv taus plua plav, kev vibration, kub heev, thiab tej thaj chaw deb. Cov yam ntxwv tseem ceeb muaj xws li cov tso tsheb hlau luam ntxiv, hnyav - lub luag haujlwm bushings, muaj peev xwm saib xyuas tej thaj chaw deb, thiab muaj peev xwm ntau dhau.



Rau kev siv hluav taws xob nyob deb nroog, a1500kVA peb theem roj immersed transformerua qhov chaw faib khoom rau tag nrho cov zos, nqis los ntawm 11 kV lossis 22 kV mus rau 400V peb-theem rau zej zog siv. Daim ntawv thov nyob deb nroog xav tau kev saib xyuas qis (hermetic kaw lub tank tsim), dav voltage kam rau ua, thiab xaiv ncej-mounting brackets.





GNEE nkag siab tias txhua tusCov ntaub ntawv siv feem ntau ntawm 1500kVA roj ntim cov khoom xa tawm hauv cov phiaj xwm hluav taws xobmuaj cov kev cai tshwj xeeb. Peb muab tag nrho customized daws teeb meem:



• Kev cai voltage ntsuas- Thawj: 6.6 kV txog 34.5 kV; Secondary: 400V txog 600V
• Vector pawg- Dyn11, Yd0, Dyn5, Yd11, Dd0
• Cov khoom siv- Conservator lossis hermetic tank, silica gel breather, roj qib ntsuas, cov cuab yeej siv siab
• Hom kua dej- Cov roj ntxhia (tus qauv), FR3 ntuj ester, lossis cov kua dej silicone
• Mounting- Pad, swb, log, lossis ncej-mounting



Txhua GNEE transformer nkoj nrog cov ntawv pov thawj kev xeem niaj hnub, hom ntawv pov thawj, thiab tag nrho cov ntaub ntawv ua raws IEC / IEEE.





Peb tau tshawb nrhiavKev siv cov xwm txheej ntawm 1500kVA roj ntim cov khoom xa tawm hauv cov phiaj xwm hluav taws xob- los ntawm cov chaw siv hluav taws xob thiab cov chaw tsim khoom lag luam mus rau lub zog tauj dua tshiab, cov chaw lag luam, cov ntaub ntawv chaw, mining, thiab hluav taws xob nyob deb nroog. Cov1500kVA roj puv tis transformermuab qhov zoo tshaj qhov sib npaug ntawm qhov muaj peev xwm, tus nqi, thiab kev ntseeg siab thoob plaws txhua daim ntawv thov no.



Ntawm GNEE Hluav Taws Xob, peb tau tsim thiab xa ntau txhiab tus 1500kVA roj ntim cov tshuab hloov pauv rau txhua qhov kev siv tau piav qhia saum toj no.Peb ISO 9001: 2015 muaj ntawv pov thawj Hoobkas, kev cai engineering muaj peev xwm, thiab 18+ xyoo ntawm kev xa tawm ua rau peb yog koj tus khub zoo tagnrho.

Thov Ib Qhov Quote



Npaj los qhia txog 1500kVA roj puv tis transformer rau koj daim phiaj daim ntawv thov?



Hu rau GNEE hnub no nrog koj qhov voltage, zaus, mounting, thiab accessories. Peb pab neeg ua haujlwm engineering yuav teb tsis pub dhau 24 teev nrog kev siv - rooj plaub - cov ntaub ntawv tshwj xeeb thiab lub Hoobkas - hais ncaj qha.Qhia rau peb koj daim ntawv thov - peb yuav xa cov transformer zoo meej.



Dab tsi yog 1500kVA Peb Theem Roj Immersed Transformer?
A 1500kVA Peb Theem Roj Immersed Transformer yog lub siab - lub peev xwm faib hluav taws xob uas siv cov roj insulating rau cua txias thiab rwb thaiv tsev, tsim kom muaj zog nce lossis nqis hauv cov nroj tsuag, cov chaw ua haujlwm, thiab kev lag luam fais fab.



Dab tsi yog qhov txawv ntawm 1500kVA roj puv transformer thiab qhuav -hom transformer?
Lub 1500kVA roj puv transformer siv cov roj ntxhia los ua kom txias txias thiab rwb thaiv tsev ua haujlwm, ua rau nws tsim nyog rau sab nraum zoov thiab hnyav- cov ntaub ntawv siv, thaum qhuav- hom transformer cia siab rau huab cua los yog resin rwb thaiv tsev, ua kom muaj kev nyab xeeb thiab tsim nyog rau qhov chaw nyob sab hauv.



Cov ntawv thov twg yog qhov tsim nyog rau 1500kVA roj immersed transformer?
Lub 1500kVA roj immersed transformer yog dav siv nyob rau hauv lub hwj chim faib tes hauj lwm, manufacturing chaw tsim tshuaj paus, mining ua hauj lwm, infrastructure tej yaam num, thiab hluav taws xob substations uas yuav tsum tau high efficiency thiab kev cia siab rau.



Dab tsi yog qhov zoo ntawm 1500kVA roj immersed hom transformer?
Lub 1500kVA roj immersed hom transformer muaj ntau dua efficiency, zoo dua tshav kub dissipation, ntev kev pab cuam lub neej, muaj zog overload muaj peev xwm, thiab qis pib peev piv rau qhuav - hom transformers.



Cov ntaub ntawv dab tsi yog siv nyob rau hauv 1500kVA roj puv tis transformer?
Lub 1500kVA roj puv tis transformer yog tsim los siv high-permeability silicon steel cores, tooj liab lossis aluminium windings, siab- cov ntaub ntawv rwb thaiv tsev zoo, thiab transformer- qib ntxhia roj.



1500kVA roj puv transformer puas tuaj yeem kho tau?
Yog lawm, 1500kVA roj puv transformer tuaj yeem ua raws li qhov sib piv voltage, zaus, vector pawg xws li Dyn11, txoj kev txias (ONAN / ONAF), impedance, thiab enclosure tsim raws li qhov yuav tsum tau ua.
